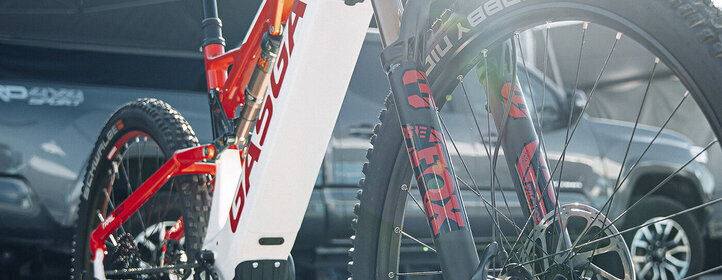

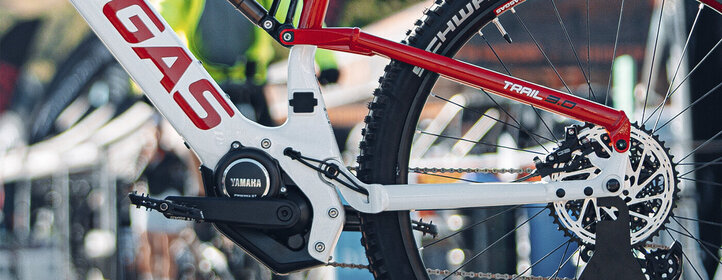

Our top-spec G Trail bike is even more capable, even more efficient, and, dare we say it, even more fun to ride. Underneath that iconic red and white GASGAS livery lies a carbon main frame with an alloy rear triangle that offers a balanced mix of lightness, stiffness, and flex where you need it most. A slack head angle and shorter chain stay maximizes thrills when descending, while a steep seat tube angle allows you to be the boss of the climbs. With 150mm suspension travel, every trail is on the menu!The G Trail 3.0 comes equipped with a 70Nm Yamaha PW-ST motor and 630Wh Simplo integrated battery. It’s a perfect combination of power and range, which will enable you to go the distance each and every time. Five pedal-assist modes allow you to fully control the support on offer.An e-bike specific FOX Float 36 Factory Fit4 fork and FOX Float DPS Factory rear shock allow for ultimate tuning, so you can really dial in that plush trail feel. Four-piston SRAM G2 R brakes on 200mm front and 180mm rear rotors keep stopping distances to a minimum. A 12-speed SRAM Eagle drivetrain ensures seamless shifting and a Schwalbe Nobby Nic shod 29" wheel set cap off a polished build.
RENKAAN KOKO
29"/622mm
|
RUNKO
29", Carbon/Alloy 6061, Integrated battery, Boost, 150 mm
|
HAARUKKA
FOX Float 36 Factory, FIT4, E-Bike+, Air, 150 mm, tapered
|
|
 ISKUNVAIMENTAJA
FOX Float DPS Factory, Air, 230x65 mm
|
 MOOTTORI
Yamaha PW-ST, 250 W, 70 Nm
|
 AKKU
Simplo, 630 Wh, 36 V
|
| PERMISSIBLE TOTAL VEHICLE WEIGHT |
130 kg |
| TRAILER APPROVAL |
No trailer approval |
| GEAR SHIFT LEVER |
SRAM SX Eagle, Single Click |
| SADDLE |
GASGAS MTB |
| REAR BRAKE |
SRAM G2 R, 4-piston, Hydraulic disc brake |
| MOTOR |
Yamaha PW-ST, 250 W, 70 Nm |
| FRAME |
29", Carbon/Alloy 6061, Integrated battery, Boost, 150 mm |
| FRONT BRAKE |
SRAM G2 R, 4-piston, Hydraulic disc brake |
| GRIPS |
GASGAS MTB, Lock-on grips |
| HANDLEBAR |
GASGAS Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm |
| STEM |
GASGAS 35, 0 °, Ahead |
| FRONT WHEEL |
Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle |
| TIRE |
Schwalbe Nobby Nic, Evolution, 62-622, 29x2.4 |
| FORK |
FOX Float 36 Factory, FIT4, E-Bike+, Air, 150 mm, tapered |
| WEIGHT |
24.5 kg |
| COMPLIANT WITH STVZO (GERMAN ROAD TRAFFIC REGISTRATION ORDINANCE) |
STVZO No |
| SHIFTER |
Integrated into display |
| CHAIN |
SRAM SX Eagle |
| BATTERY |
Simplo, 630 Wh, 36 V |
| DISPLAY |
Yamaha Display A, LCD-Display, Micro-USB |
| GEAR RIM |
SRAM PG-1210, 11-50 T |
| SHOCK |
FOX Float DPS Factory, Air, 230x65 mm |
| SPOKE |
Mach1, stainless steel |
| REAR DERAILLEUR |
SRAM GX Eagle, 12-S |
| SEAT POST |
GASGAS Pro, 31.6 mm, Dropper post |
| CHARGER |
Simplo rapid charger, 4 A |
| REAR WHEEL |
Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle, HG |
| CHAIN RING |
GASGAS, Narrow Wide, 34 T |
| CRANK ARM |
GASGAS EC40, Aluminum forged, JIS |
| PEDALS |
GASGAS, aluminum |
Due to problems in supply chain, the bike can be delivered with modifications.
