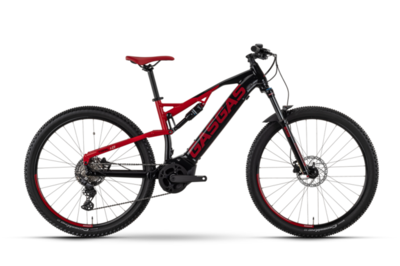

The G Trail 1.0 is our short-travel trail bike. With 130mm of suspension, it’s a nimbler handler than its G Trail bigger brothers. But don’t let that fool you into thinking it’s not as capable. A bike that’s ideal for days where rowdy is not on the menu, the G Trail 1.0 still gets the juices flowing, just fuss-free. Fast rolling with super-efficient and responsive handling, it’s happiest soaking up mile after mile of flow trails. Go chase those mountain-top Kodak moments on the G Trail 1.0.The G Trail 1.0 features the 250W Yamaha PW-ST 70Nm motor with five pedal-assist modes including Automatic Support where the motor continuously adapts the power mode to suit terrain and effort exerted by the rider. SR SUNTOUR suspension, Tektro components and Continental tires complete the build.
RENKAAN KOKO
29"/622mm
|
RUNKO
29", Alloy 6061, Integrated battery, Boost, 130 mm
|
HAARUKKA
SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 130 mm, tapered
|
|
 ISKUNVAIMENTAJA
SR SUNTOUR Raidon R, Air, 210x55 mm
|
 MOOTTORI
Yamaha PW-ST, 250 W, 70 Nm
|
 AKKU
Yamaha ML500, 500 Wh, 36 V
|
| PERMISSIBLE TOTAL VEHICLE WEIGHT |
130 kg |
| TRAILER APPROVAL |
No trailer approval |
| CHAIN |
KMC e9S |
| DISPLAY |
Yamaha Display A, LCD-Display, Micro-USB |
| FRAME |
29", Alloy 6061, Integrated battery, Boost, 130 mm |
| SPOKE |
SPOKE |
| GRIPS |
GASGAS MTB, Lock-on grips |
| SEAT POST |
GASGAS, 31.6 mm, 350 mm, Patent |
| GEAR SHIFT LEVER |
Tektro SL-M350R |
| CHARGER |
Yamaha rapid charger, 4 A |
| REAR WHEEL |
Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210R, 6-hole, 12x148 mm, thru axle, HG |
| CHAIN RING |
GASGAS, Narrow Wide, 38 T |
| REAR BRAKE |
Tektro HD-M280, 2-piston, Hydraulic disc brake |
| CRANK ARM |
GASGAS EC40, Aluminum forged, JIS |
| WEIGHT |
24.3 kg |
| COMPLIANT WITH STVZO (GERMAN ROAD TRAFFIC REGISTRATION ORDINANCE) |
STVZO No |
| SHIFTER |
Integrated into display |
| SADDLE |
GASGAS MTB |
| MOTOR |
Yamaha PW-ST, 250 W, 70 Nm |
| SHOCK |
SR SUNTOUR Raidon R, Air, 210x55 mm |
| TIRE |
Continental Cross King, 58-622, 29x2.3 |
| HANDLEBAR |
GASGAS Riser 31.8 mm, 780 mm, Sweep: 6 °, Rise: 15 mm |
| STEM |
GASGAS 31.8, 7 °, Ahead |
| REAR DERAILLEUR |
Tektro RD-M350, 9-S |
| FRONT WHEEL |
Rim: Mach 1 TRUCKY 30, With eyelets, Tubeless ready / Hub: GASGAS DA210F, 6-hole, 15x110 mm, thru axle |
| GEAR RIM |
Tektro CS-M350, 11-46 T |
| FORK |
SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 130 mm, tapered |
| FRONT BRAKE |
Tektro HD-M280, 2-piston, Hydraulic disc brake |
| BATTERY |
Yamaha ML500, 500 Wh, 36 V |
| PEDALS |
GASGAS, aluminum |
Due to problems in supply chain, the bike can be delivered with modifications.
